.font5[Introduction]
]]

---

# What is .text-hl[Data Linkage]?

## It is a method used to gather .text-hl[information] from
## .text-hl[different sources], giving rise to .text-hl[richer datasets]

---

# What is .text-hl[Spatial Join]?

## It is a .text-hl[GIS] operation used to .text-hl[combine information]
## from different sources of .text-hl[spatial data] based on a given
## relationship between their spatial features

---

.column.bg-main1[
.split-three[
.row.bg-main1[.content.vmiddle.center[
# Example 1
]]
.row.bg-main2[.content.vmiddle.center[
# Example 2
]]
.row.bg-main3[.content.vmiddle.center[
# Example 3
]]
]]

.column.bg-main5[.content.vmiddle.center[

]]

---

.column.bg-main1[
.split-three[
.row.bg-main1[.content.vmiddle.center[
# Example 1
## Polygons Polygons
]]
.row.bg-main2[.content.vmiddle.center[
# Example 2
]]
.row.bg-main3[.content.vmiddle.center[
# Example 3
]]
]]
.column.bg-white[.content.vmiddle.center[
![](index_files/figure-html/int_im1-1.svg)
]]

---

---

.column.bg-main1[
.split-three[
.row.bg-main1[.content.vmiddle.center[
# Example 1
## Polygons Polygons
]]
.row.bg-main2[.content.vmiddle.center[
# Example 2
## Polygons Points
]]
.row.bg-main3[.content.vmiddle.center[
# Example 3
]]
]]

.column.bg-white[.content.vmiddle.center[
![](index_files/figure-html/int_im3-1.svg)
]]

---

.column.bg-main1[
.split-three[
.row.bg-main1[.content.vmiddle.center[
# Example 1
## Polygons Polygons
]]
.row.bg-main2[.content.vmiddle.center[
# Example 2
## Polygons Points
]]
.row.bg-main3[.content.vmiddle.center[
# Example 3
]]
]]

.column.bg-white[.content.vmiddle.center[
![](index_files/figure-html/int_im4-1.svg)
]]

---

.column.bg-main1[
.split-three[
.row.bg-main1[.content.vmiddle.center[
# Example 1
## Polygons Polygons
]]
.row.bg-main2[.content.vmiddle.center[
# Example 2
## Polygons Points
]]
.row.bg-main3[.content.vmiddle.center[
# Example 3
## Points Polygons
]]
]]

.column.bg-white[.content.vmiddle.center[
![](index_files/figure-html/int_im5-1.svg)
]]

---

.column.bg-main1[
.split-three[
.row.bg-main1[.content.vmiddle.center[
# Example 1
## Polygons Polygons
]]
.row.bg-main2[.content.vmiddle.center[
# Example 2
## Polygons Points
]]
.row.bg-main3[.content.vmiddle.center[
# Example 3
## Points Polygons
]]
]]

.column.bg-main5[.content.vmiddle.center[

]]

---

.column.bg-main3[
]
.column.slide-in-right[
.sliderbox.bg-main2.vmiddle[
.font5[Method]
]]

---

# .text-hl[Definitions]

---

.column[.content.vmiddle.center[
### `$$Y = \{Y_1, ..., Y_{n_y} \}$$`, where `$Y_i \in A \forall i$`.
]]
]

---

.column[
.content.vmiddle.center[
### `$Z = \{Z_1, ..., Z_{n_z} \}$`, where `$\cup_{i = 1}^{n_z} Z_i = A$`.

### `$X_k = \{X_{k,1}, ..., X_{k,p} \}$` is a vector of continous variables belonging
### to `$Z_k$`.
]]]

---

# How can we .text-hl[extract data] from Spatial .text-hl[Polygons] to Spatial .text-hl[Points]?

Consider that we want to extract, or estimate, the variable `$X_{., 1}$` observed in
the spatial polygons `$\{Z\}$` for each point `$\{Y\}$`.

---

# .text-hl[Naive Approach]

---

---

### `$$E[X^*_{k, 1}] = E[\{ X_{j, 1} : Y_k \subset Z_j \}]$$`

### `$$Var[X^*_{k, 1}] = Var[\{ X_{j, 1} : Y_k \subset Z_j \}]$$`

---

# .text-hl[Voronoi Data Linkage]

---

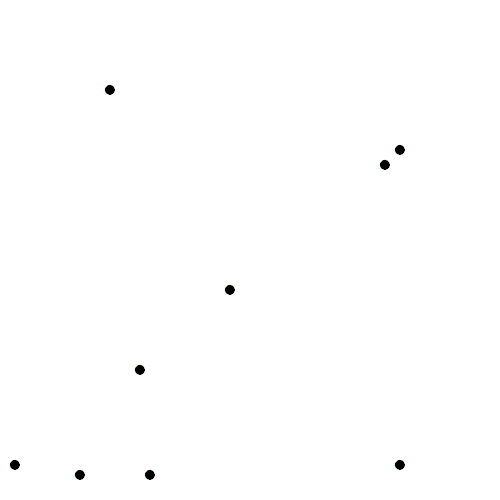

# Voronoi Tessellation

![](img/vor_ex.gif)

---

.column[
.content.vmiddle.center[

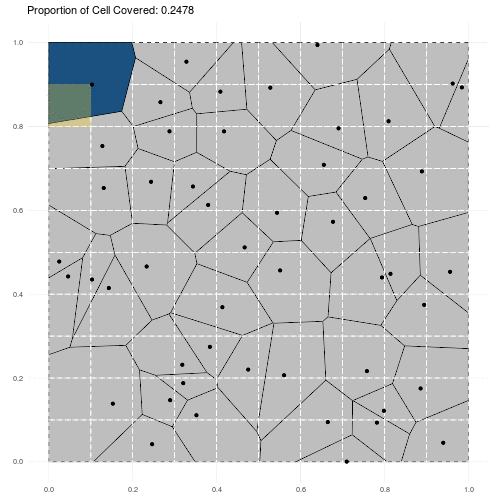

Now, we have a voronoi cell `$V_k$` associated to each point `$Y_k$`.
]]

]

---

---

### `$X^*_{k, 1} = \sum_{i = 1}^{n_z} p_{i, k} X_{i, 1}$`

### `$E[X^*_{k, 1}] = \sum_{i = 1}^{n_z} p_{i, k} E[X_{i, 1}]$`

### `$Var[X^*_{k, 1}] = \sum_{i = 1}^{n_z} p^2_{i, k} Var[X_{i, 1}] + 2 \mathop{\sum \sum}_{i < j} p_{j, k} p_{i, k} Cov(X_{j, 1}, X_{i, 1})$`

---

# .text-hl[Recap]

---

### Naive Approach

* `$Var[X^*_{k, 1}] = Var[\{ X_{j, 1} : Y_k \subset Z_j \}]$`
* Does not take advantage of all available data;
* More variability;
* Does not inherit the autocovariance structure from data;

### Voronoi Data Linkage

* `$Var[X^*_{k, 1}] = \sum_{i = 1}^{n_z} p^2_{i, k} Var[X_{i, 1}] + 2 \mathop{\sum \sum}_{i < j} p_{j, k} p_{i, k} Cov(X_{j, 1}, X_{i, 1})$`
* Takes advatange of all available data;
* Less variability;
* Inherits the autocovariance structure from data;

---
